Can these models qualify a battery or converter design?

No. They are educational engineering references and transparent baselines. Cell-specific calibration, measured validation data, safety analysis, component tolerances, and project-specific qualification remain necessary.

Open model laboratory · MATLAB/Simulink

MATLAB Simulink Energy Lab.

Q: What is the MATLAB Simulink Energy Lab?

It is an open-source collection of small, inspectable battery and power-electronics reference models. Each example states its assumptions, units, sign conventions, validation checks, and engineering limits.

Q: Which battery models are included?

The lab includes first-order and two-RC electrical models, an open-circuit-voltage hysteresis model, an extended Kalman filter for state-of-charge estimation, a coupled electro-thermal cell model, a six-cell serial liquid-cooling network, and a pouch-cell through-thickness finite-volume thermal model.

Run compact battery, thermal, state-estimation, converter, and unified BESS control models whose assumptions stay visible from equation to validation result.

Release and reproducible evidence Current release as of 2026-11-12: v1.12.0, published 2026-10-21; release tag target 53d49b00089532e35a9c12cf60e83b0934ed4d19. Successful hosted check 42625040387 ran on 2026-11-09 against ef53d73b066bf1913e2bb7080f9c86ff52ea22ed; this is distinct from the release tag and the Atlas documentation snapshot. Two-RC fit with separate synthetic held-out validation MATLAB R2026a · MIT license Open source repository Review v1.12.0 release Run the two-RC example Open in MATLAB Online

First reproducible result

Fit one synthetic pulse record, then test another.

The two-RC example fits battery parameters on a calibration record and evaluates a separate held-out record. Run these commands from a new checkout; they pin the demonstrated source rather than following a changing branch.

git clone https://github.com/mohammadrezwankhan/matlab-simulink-energy-lab.git
cd matlab-simulink-energy-lab
git checkout --detach e1aa01571fbb2b6cbe378f72ac9335374f19fc2e
matlab -batch "run('examples/battery-2rc-model/check_battery_2rc_fit.m')"
matlab -batch "run('examples/battery-2rc-model/run_battery_2rc_fit.m'); exportgraphics(gcf,'two-rc-fit-held-out.png')"

The second command writes two-rc-fit-held-out.png in the checkout folder. Open that file after MATLAB exits to inspect the four-panel fit and held-out plot.

On MATLAB R2026a, the successful exact-source hosted check reports 0.401 mV calibration RMSE and 0.440 mV held-out RMSE. These deterministic synthetic results demonstrate the example's numerical behavior; measured-cell accuracy and hardware qualification require separate evidence.

Read the existing two-RC tutorial and its assumptions.

Engineering question

How can battery, thermal, converter, and supervisory-control assumptions become small executable models with deterministic evidence?

Battery, power-electronics, and BESS engineers can use the lab to inspect interfaces and numerical behavior before replacing its illustrative parameters with measured, project-specific evidence.

Laboratory system map

Follow electrical state into thermal, converter, control, and evidence paths.

The released examples remain small enough to inspect independently, while this map makes the interfaces between model families explicit.

Battery and energy-system evidence flow

01Battery electrical states1RC, 2RC, pulse response, parameter fit, and OCV hysteresis
02SOC estimationNoisy current and voltage correct a biased two-state EKF
03Electro-thermal responseLoss, entropic heat, resistance feedback, limits, and cooling sensitivity
04Module and pouch behaviorCoolant-path nonuniformity and through-thickness gradients
05Power conversionAverage, switching, closed-loop, controller-comparison, and Simulink references
06Unified BESS controlFollowing, forming, islanding, synchronization, limits, faults, and recovery
07Automated evidenceSource-pinned checks, model boundaries, traceability, and release artifacts

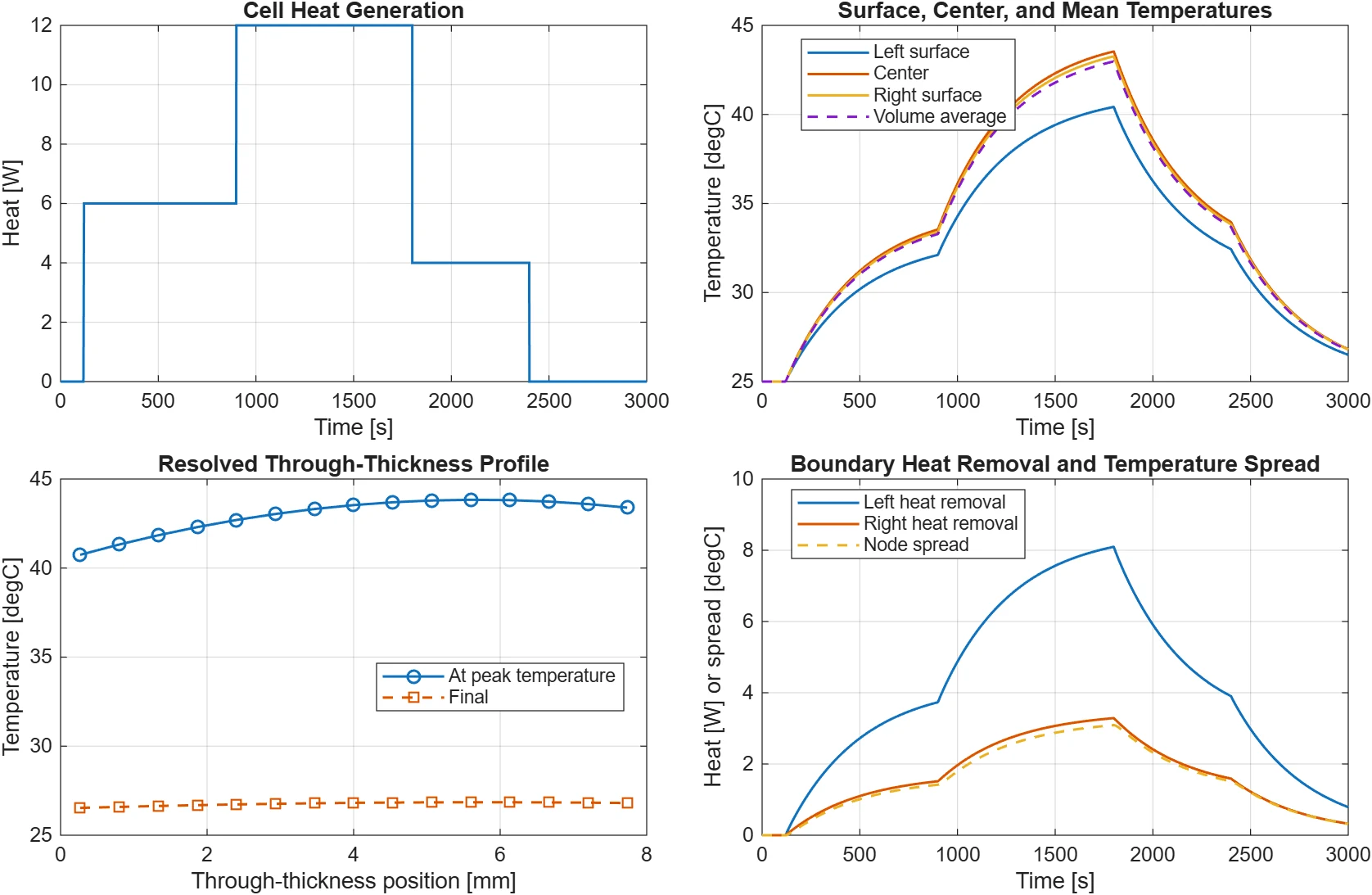

Pouch-cell finite-volume simulation showing heat input, surface and center temperatures, through-thickness temperature profiles, and boundary heat removal — Validated thermal result
The finite-volume model resolves surface temperatures, an internal hot spot, through-thickness gradients, and asymmetric boundary heat removal.
Open full-size figure

Multiphysics thermal modeling

Resolve the internal hot spot across a pouch cell.

The one-dimensional finite-volume model represents layered through-thickness conduction with unequal convection at the two broad faces. Its validation case reaches a 43.83 °C peak at 5.60 mm and 1800 s, with a 3.09 °C peak spatial spread.

A symmetric-boundary benchmark agrees with the analytical steady solution within 0.003 °C, while the medium-to-fine grid difference is 0.0024 °C.

Inspect equations, assumptions, and checks

Model catalogue

Move from electrical dynamics to thermal and control evidence.

Battery dynamics

First-order, two-RC, and OCV-hysteresis models expose SOC, terminal voltage, polarization, pulse recovery, and charge/discharge voltage history.

Inspect the hysteresis model

Real-time SOC estimation

A two-state extended Kalman filter corrects a biased SOC prior using noisy current and terminal-voltage measurements.

Inspect the SOC EKF

Battery thermal management

Cell, module, and pouch-cell models expose heat generation, cooling sensitivity, thermal-limit exposure, coolant-path nonuniformity, and spatial gradients.

Inspect the pouch-cell thermal model

Power converters

Average-value, switching, closed-loop, and native Simulink references connect duty cycle and controller choices to voltage, current, ripple, and settling metrics.

Inspect controller comparisons

Unified BESS control

A generated Simulink reference covers grid following, grid forming, island support, synchronization, reconnection, limits, measurement faults, and recovery.

Review the BESS control evidence

Repository-generated results

Model families retain their own evidence and assumptions.

These figures are copied byte-for-byte from v0.9.0 and delivered as optimized WebP while the source PNG remains downloadable.

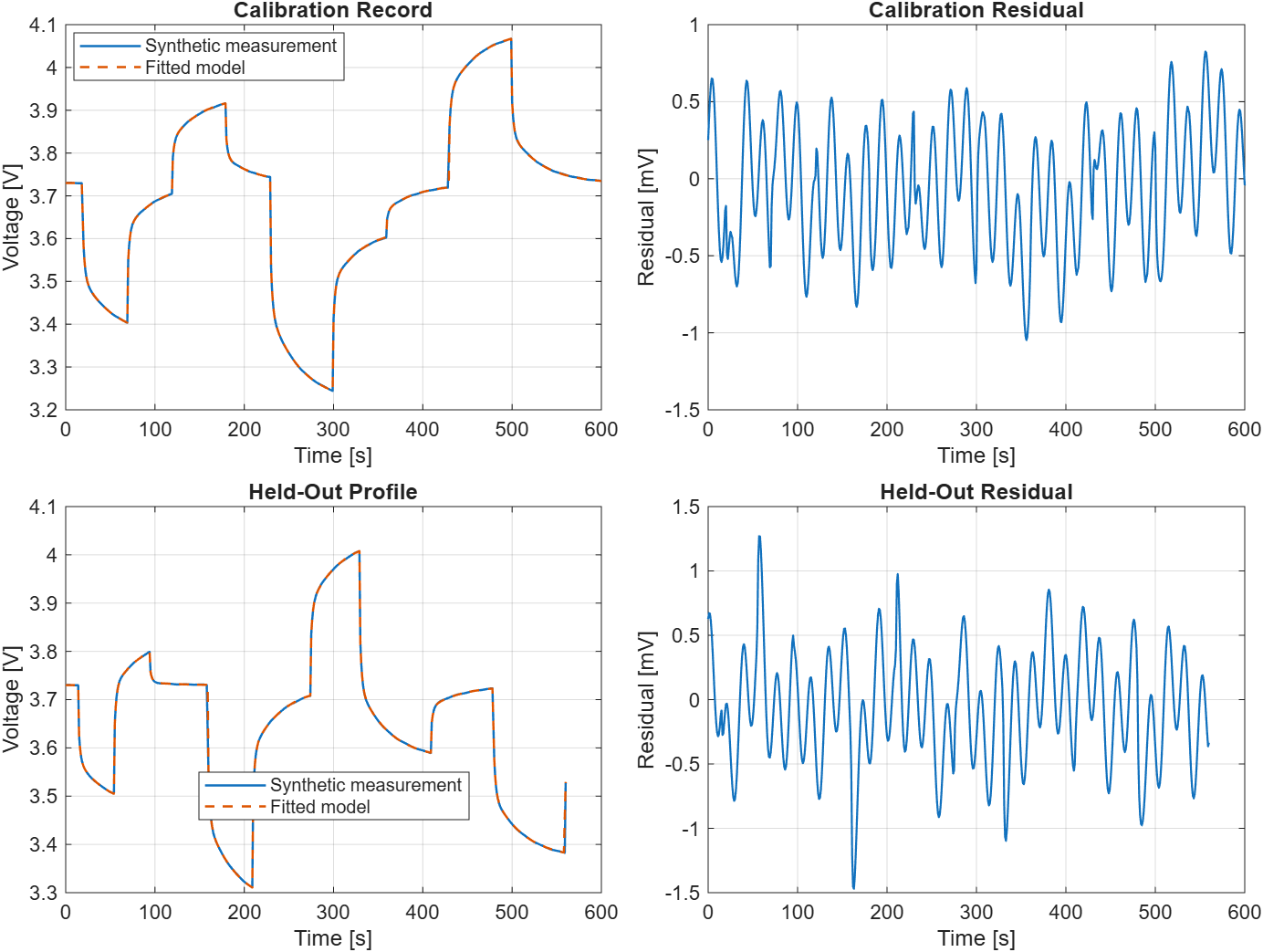

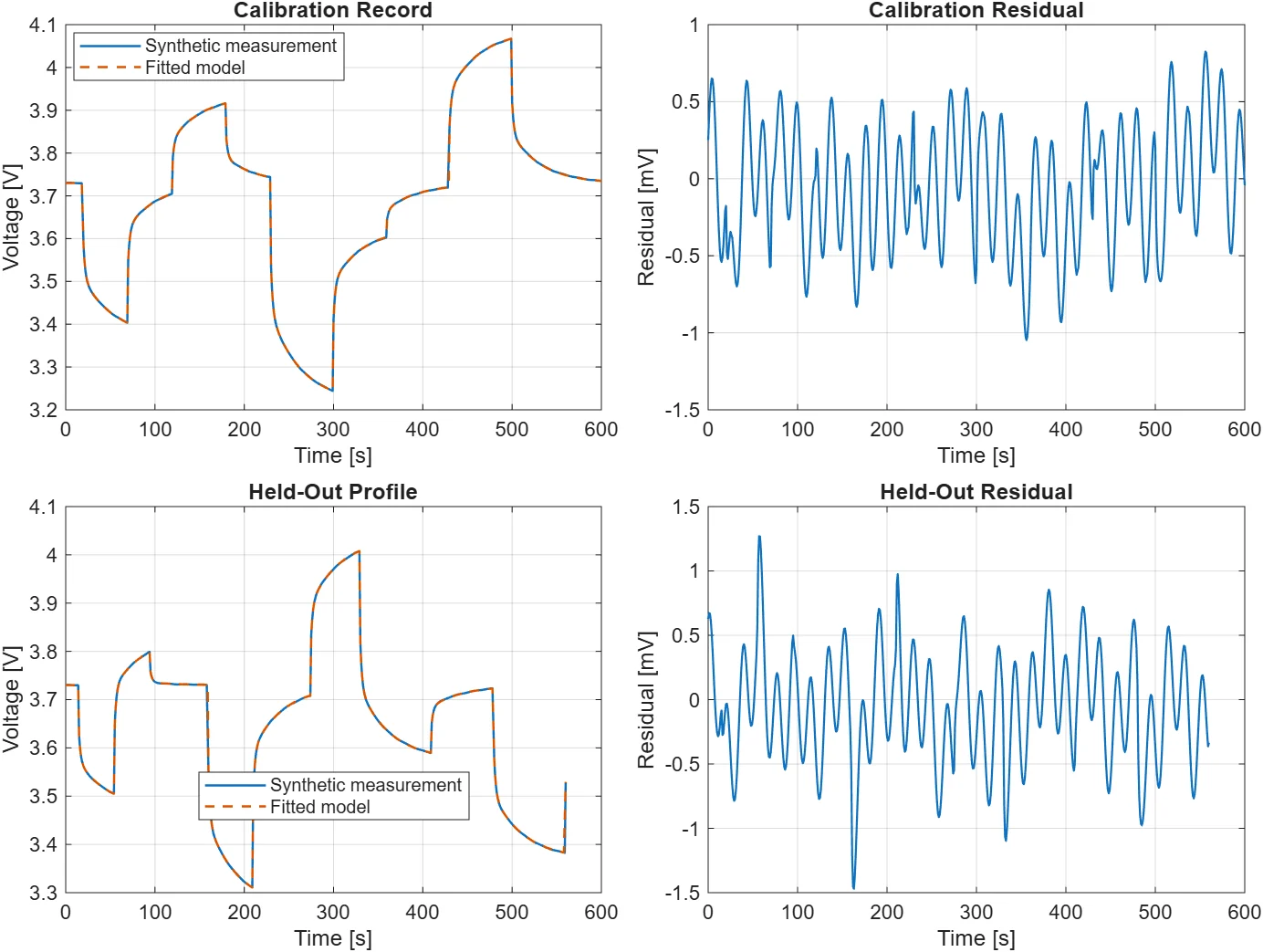

Two-RC battery parameter-identification result comparing fitted and synthetic terminal voltage on calibration and held-out pulse profiles — Synthetic identification · repository generated
Two-RC fit and held-out voltage response
Toolbox-free positive-parameter identification is evaluated on a separate pulse profile; the released check requires sub-1.5 mV held-out RMSE.
Source
v0.9.0 · a77d8cda9920 · `run_battery_2rc_fit`
Download source PNG Inspect model and check
Open full-size figure

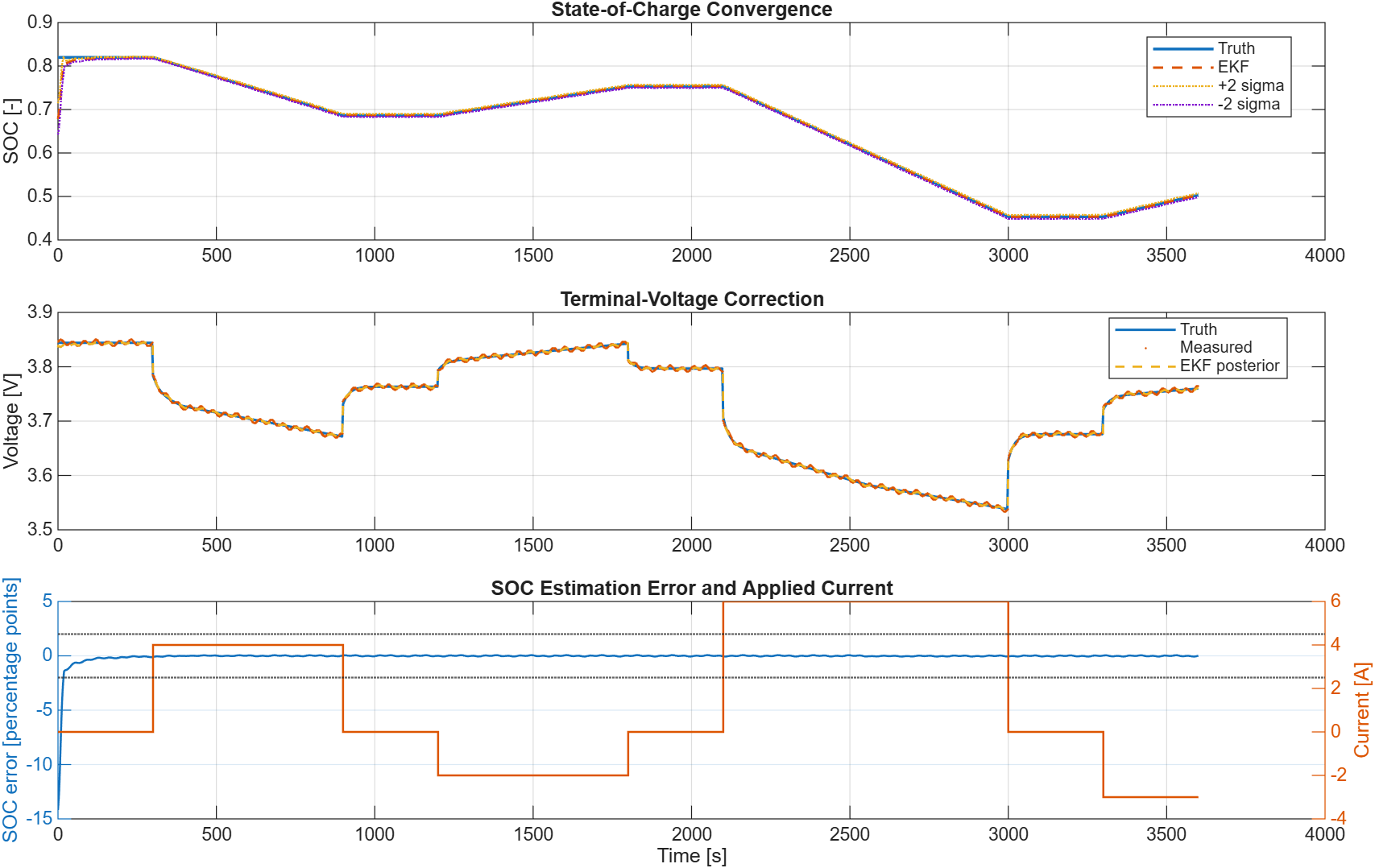

Battery SOC extended Kalman filter result showing truth, biased initial estimate, corrected state, terminal voltage residual, and uncertainty — Synthetic estimation · repository generated
SOC-EKF correction from a biased prior
The two-state Joseph-form EKF uses noisy current and voltage in a deterministic scenario that begins with a 20-point SOC bias.
Source
v0.9.0 · a77d8cda9920 · `run_battery_soc_ekf`
Download source PNG Inspect estimator and check
Open full-size figure

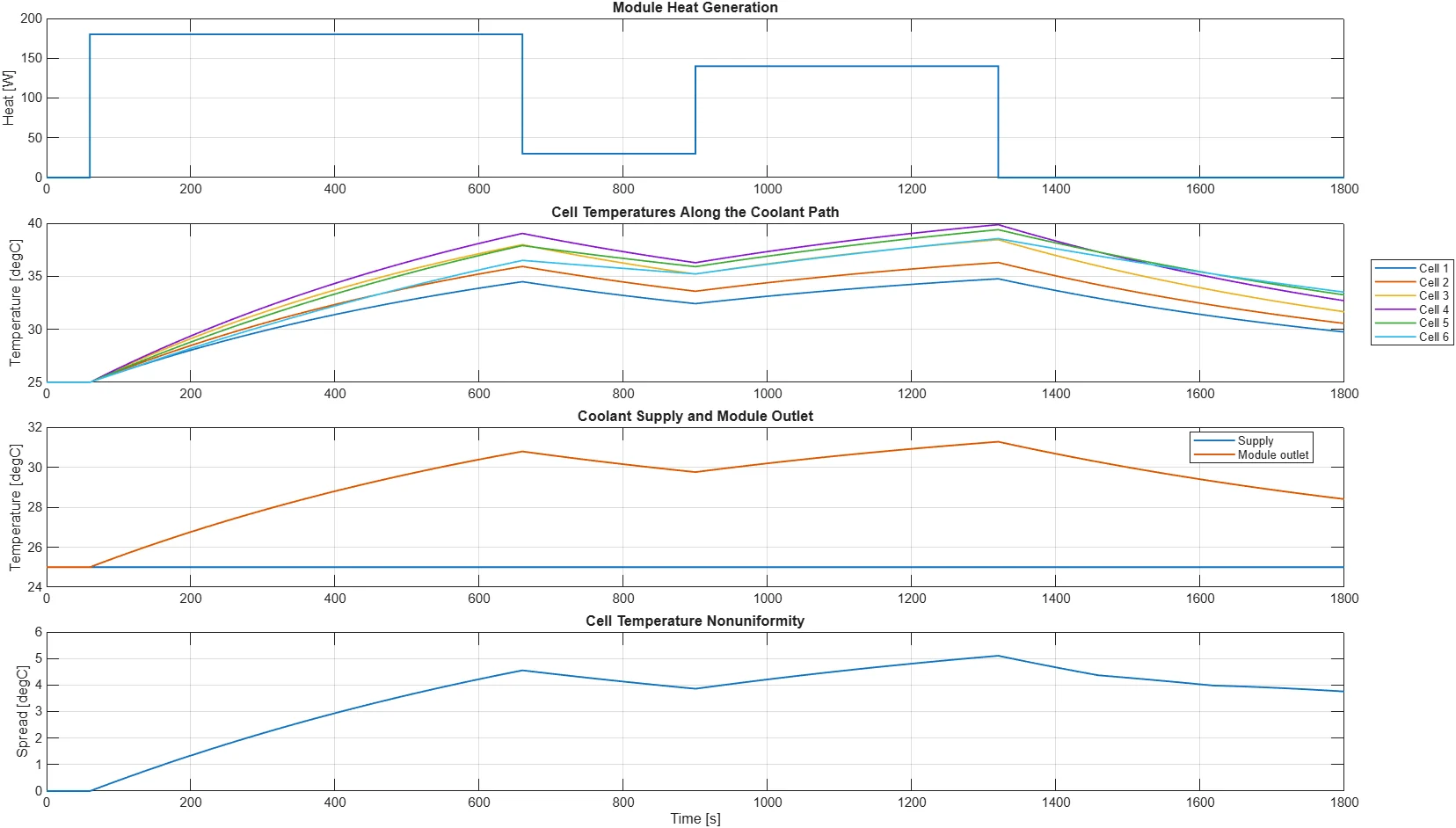

Six-cell battery module cooling-network result showing cell temperatures, coolant warming, hottest cell, and module temperature spread — Illustrative module thermal · repository generated
Serial coolant warming and cell-to-cell spread
Six lumped cell states resolve nonuniform heat generation, nearest-neighbor conduction, coolant-segment warming, and module energy-balance diagnostics.
Source
v0.9.0 · a77d8cda9920 · `run_battery_module_cooling_network`
Download source PNG Inspect model and check
Open full-size figure

Unified BESS controller Scenario E showing voltage, frequency, and phase synchronization errors closing inside thresholds before breaker reconnection — Scenario E · repository generated
Synchronization and reconnection evidence
The breaker remains open until voltage, frequency, phase, validity, and readiness gates pass, then the supervisor returns to grid-following control.
Source
v0.9.0 · a77d8cda9920 · `generate_bess_validation_evidence`
Download source PNG Open the focused BESS case
Open full-size figure

Verification path

Run every check from one command.

Browser entry point

Open the repository in MATLAB Online and run addpath('examples'); run_all_checks from the project root.

Deterministic evidence

Each check asserts physical, numerical, dimensional, or cross-model invariants without relying on plot inspection.

Continuous validation

GitHub Actions runs the executable model checks whenever MATLAB or Simulink implementation files change.

Review validation runs

Citable release

Versioned releases, citation metadata, an ORCID-linked author record, and an MIT license keep reuse and attribution explicit.

Review the latest release

Reproduce and inspect

Reproduce the historical August CI snapshot.

The portfolio audit last verified this historical snapshot on 2026-08-24. That audit date applies to the older evidence below; the newer release and two-RC result above have their own records.

git clone https://github.com/mohammadrezwankhan/matlab-simulink-energy-lab.git
cd matlab-simulink-energy-lab
git checkout --detach ebf2a0caa026196c2c13f9822fc8494dff78680e
matlab -batch "addpath('examples'); run_all_checks"

Documentation map

Go directly to the release, models, checks, citation, and reuse terms.

These checks describe the historical ebf2a0caa026 snapshot, not today's main branch. Its 20 Base MATLAB checks, 25 general entry points plus one unified-BESS entry point (26 total), and 31 focused BESS results retain that source boundary. Release v1.12.0 and the e1aa015 two-RC check above are separate, newer records.

Engineering boundary

Use transparent baselines before qualified design models.

The examples are educational references, not calibrated design authorities. They omit selected electrochemical, ageing, multidimensional, switching-loss, tolerance, and safety effects by design. Replace illustrative parameters with measured data, select the fidelity required by the decision, and revalidate every extension before applying it to a real battery, converter, vehicle, or grid-storage system.

Direct questions

What should a new user know?

What is the MATLAB Simulink Energy Lab?

An open collection of inspectable battery and power-electronics models with visible assumptions, units, sign conventions, checks, and limits.

Which battery models are included?

First-order and two-RC electrical models, an OCV-hysteresis model, an SOC extended Kalman filter, coupled cell and module thermal models, and a pouch-cell through-thickness finite-volume model.

How is the lab validated?

Release v1.12.0 was published on 21 October 2026. Successful hosted run 39686678787 tested source e1aa01571fbb2b6cbe378f72ac9335374f19fc2e. Its two-RC synthetic benchmark reports 0.401 mV calibration RMSE and 0.440 mV held-out RMSE. The older ebf2a0c check counts on this page remain historical evidence; these numerical checks do not qualify hardware.

Can the models qualify hardware?

No. They are transparent starting points. Cell-specific calibration, measured validation, safety analysis, tolerances, and project qualification remain necessary.

Run the models, inspect the evidence, and extend only what you can revalidate.Open or star the lab on GitHub Launch MATLAB Online
